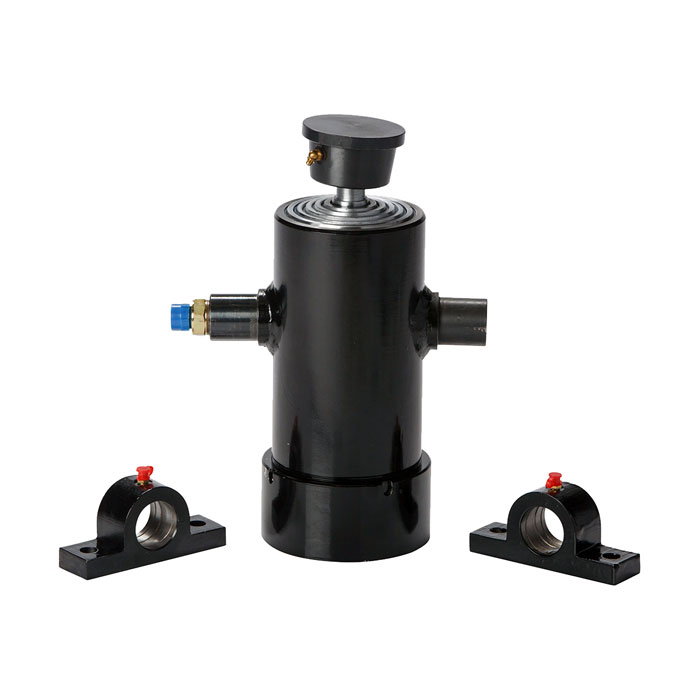

Light Duty Under Body Telescopic Cylinder

Light Duty Under Body Telescopic Cylinder

1. Product Introduction

We are committed to meeting customer requirements by providing safe and reliable products, services, and information of the highest quality in terms of reliability, on-time delivery, and customer satisfaction while ensuring employee safety, fostering employee relations and driving efficiency improvements.

Our success is based on continually improving the effectiveness of our products, processes, and Quality Management System.We are expecting become your long-term partner in china.

2.Product Parameter (Specification)

Light Duty Under Body Telescopic Cylinder

General Information

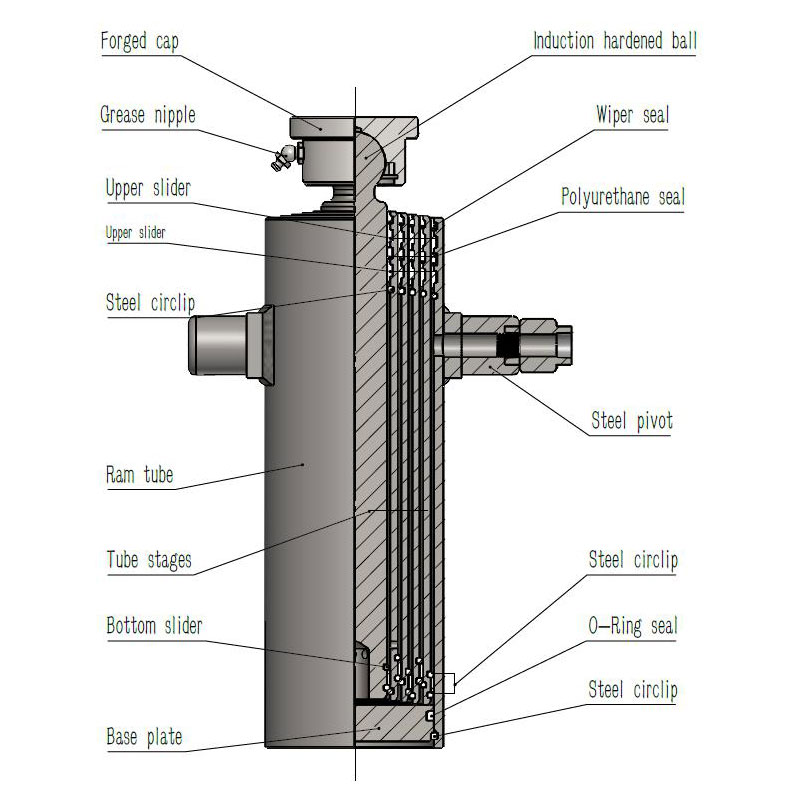

JUNRUI designs, manufactures and distributes a complete range of under - body cylinders with all the necessary cradles and supports for tractors and semi - trailers with rear, side or 3 - way tipper agriculture trailers. Single or double cylinders. Cradles and supports.

The seals used are highly resistant to permanent deformation and wear, with a working temperature from-40℃ ～+110℃.

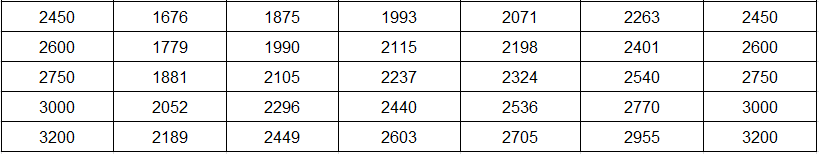

Selection charts

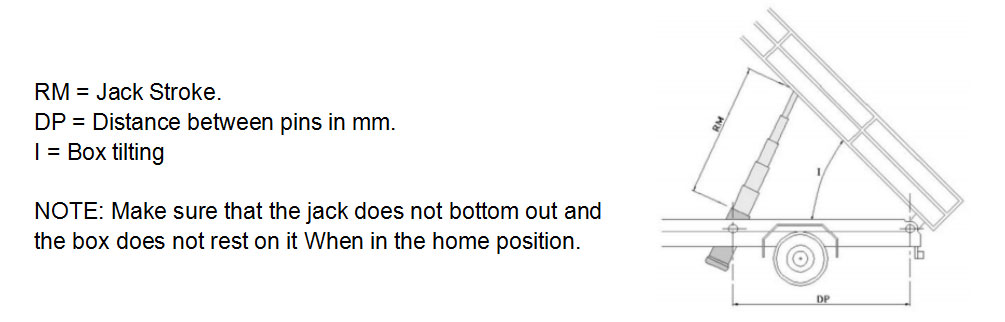

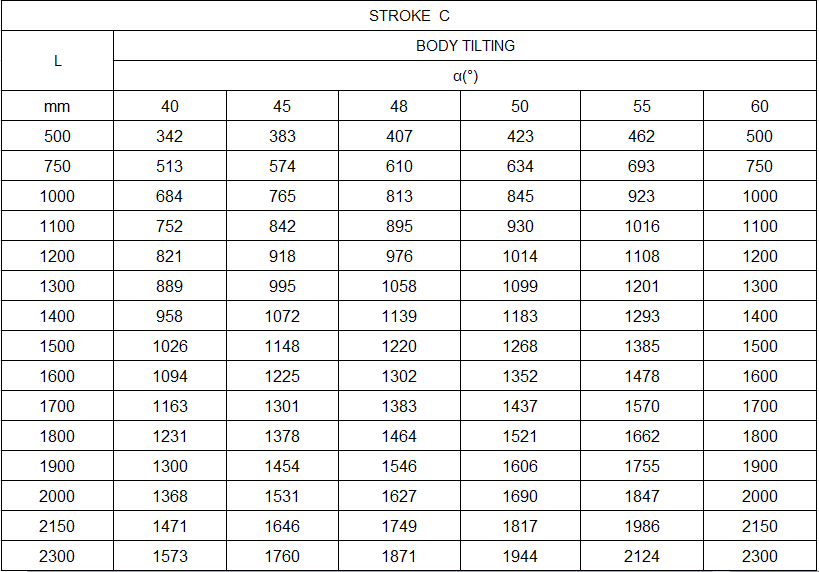

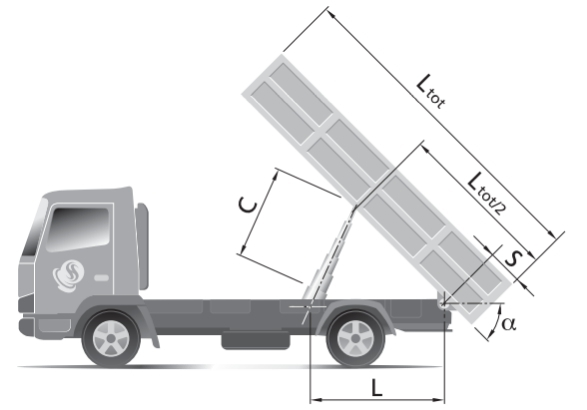

The stroke is identified by crossing the pivot length(L) with the requested tipping angle(°).

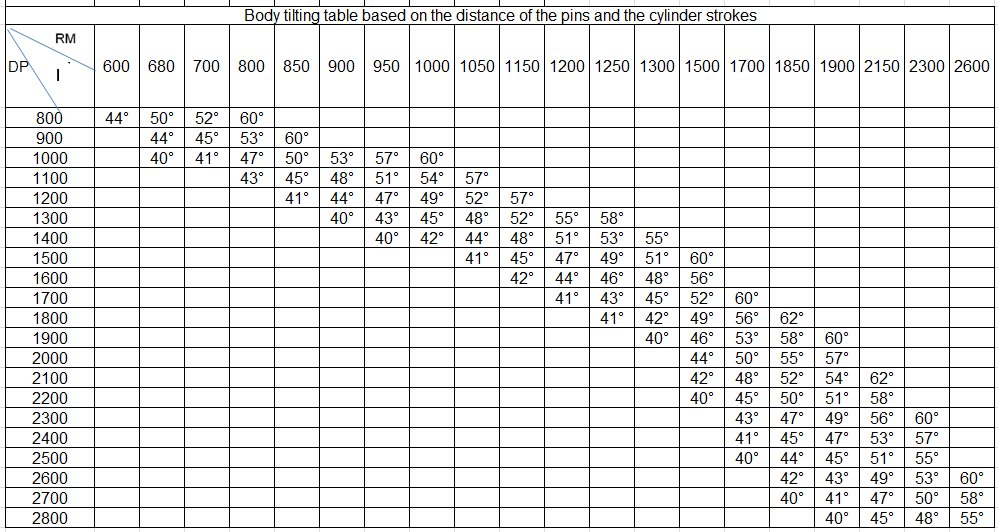

Body Tilting Tables

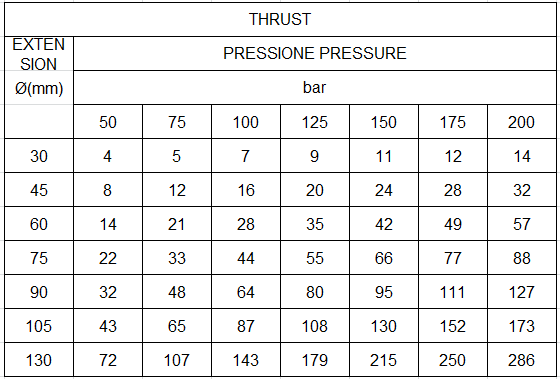

The thrust is a force generated by oil under pressure, which lifts the stage of the cylinder.
“D”is the diameter of the stage.

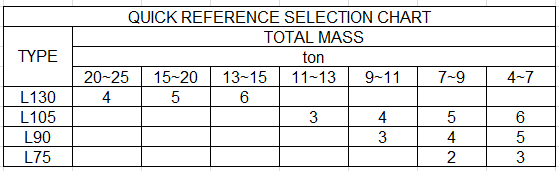

Depending on the total tipping weight, the chart identifies the most suitable model and number of stages available.

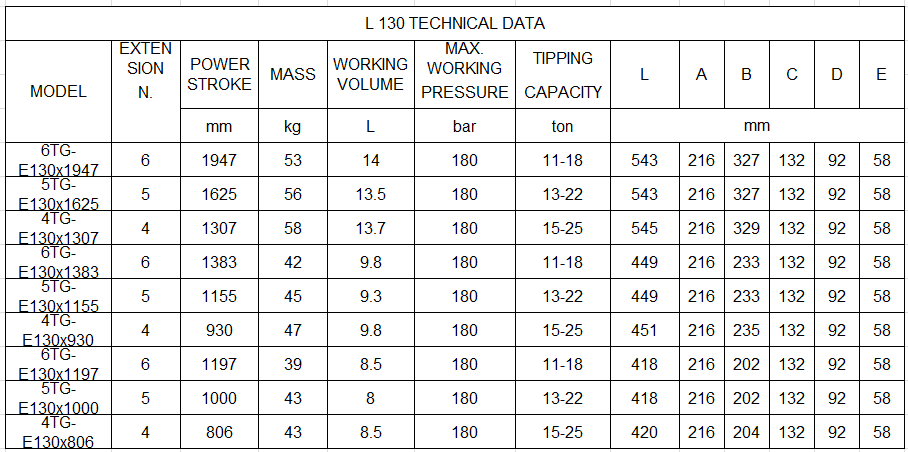

L 130
EFFECTIVE DIAMETER(mm)130·105·90·75·60·45

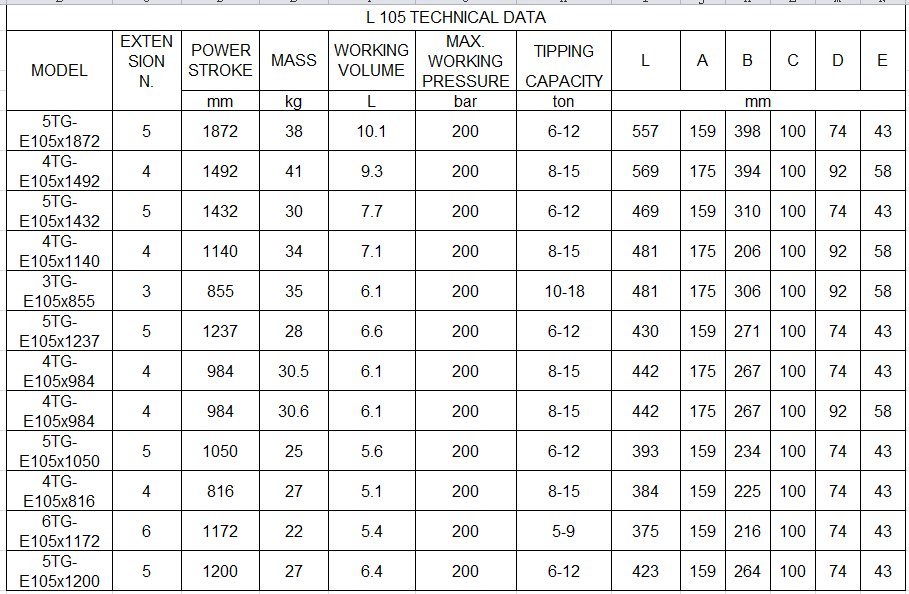

L 105
EFFECTIVE DIAMETER(mm)105·90·75·60·45·30

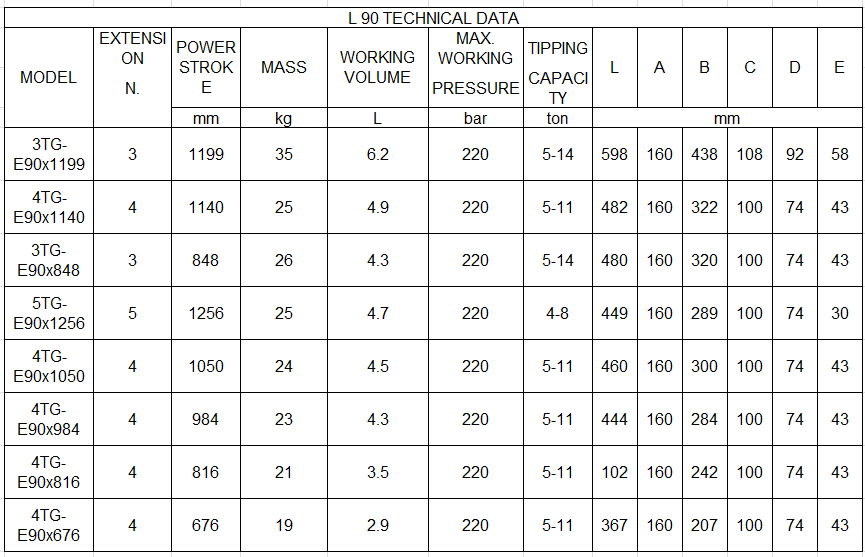

L 90
EFFECTIVE DIAMETER(mm)90·75·60·45·30

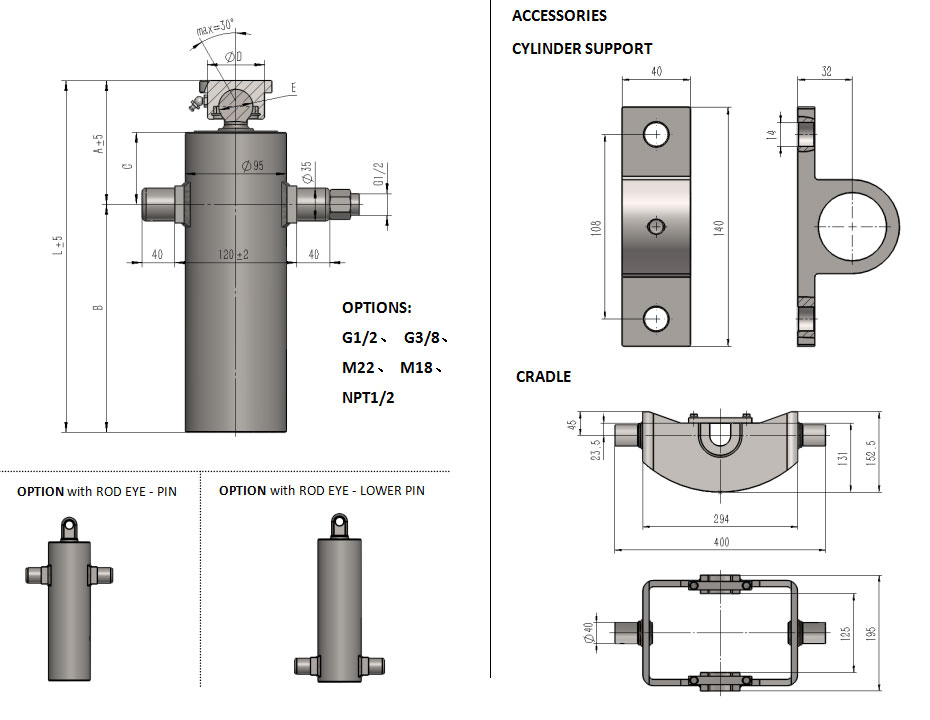

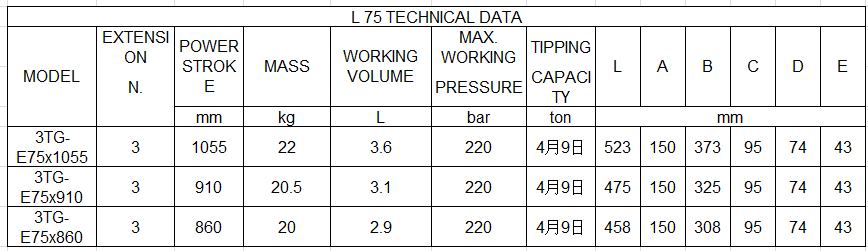

L 75
EFFECTIVE DIAMETER(mm)75·60·45

Hydraulic Power Pack

3.Product Feature And Application

No matter what industry you’re in, we have the right hydraulic cylinders for you! Our heavy duty, high-quality hydraulic cylinders can be used in a variety of industries, including:

Truck & Trailers

You’ll find our full line of cylinders can withstand harsh weather conditions and rugged use and are suitable for numerous styles of dump trailers, including:

Telescopic trailers

Scissor hoist trailers

Goose-neck trailers

Tilt & load trailers

Waste Management Equipment

Our society depends on garbage trucks and other waste vehicles. Our hydraulic cylinders keep the trucks running and are coated with a high-quality paint that is resistant to corrosion, which is essential for waste management vehicles such as:

Refuse or Garbage Trucks

Roll Off Trucks

Stationary Compactors

Industrial, Vertical Balers

Lugger Hoist Trucks

Cable Hoist Truck

Hook Hoist Trucks
