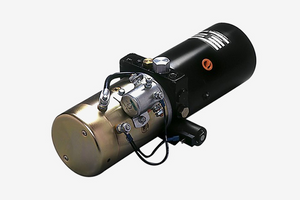

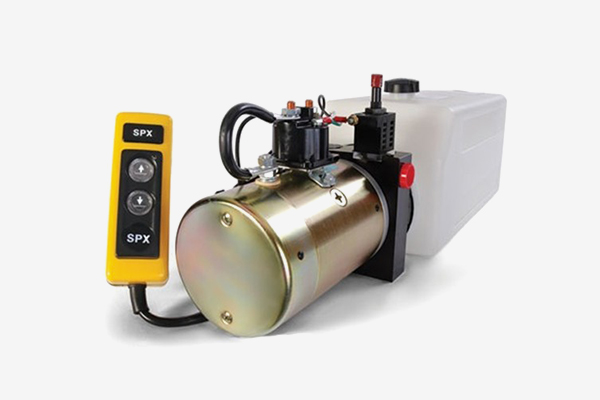

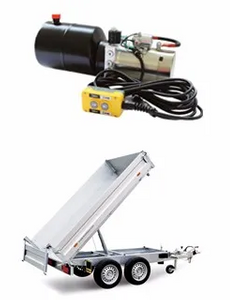

12V DC Solenoid Operated Hydraulic Power Unit/Dump Trailer Hydraulic Power Unit

Product Specifications
Part Number    DC-41DT
Warranty    Lifetime Warranty
Certified To    CE Rated
Voltage    12V

Overview
This unit is for power up-hold-power down applications. The controller (either customer-supplied or supplied with unit) will power the unit in both directions. The unit will hold load in the off position. Pressure compensated flow control allows smooth-running functions in both directions. Features include a fixed relief valve and cartridge valves for easy field service and interchangeability.Standard Features on DC-41DT family:

- 12V DC 1 Terminal Standard Duty Motor
- 12V DC Intermittent Duty Start Solenoid
- 10V DC 2P4W Direction Valving
- 10V DC 2P2W Load Hold Valve
- 2.5 GPM Flow Control
- Horizontal Mounting Plumbing
- SAE Ports
- Low RV @ 1,000 PSI

Optional Configurations:
- Controller options (yes / no)
- Pump option 1: 2.0 CC/Rev. - 3500 PSI Max.
- Pump option 2L 3.1 CC/Rev. - 2500 PSI Max.
- Reservoir option 1: 5.6 Litre / 1.5 Gallons - Plastic
- Reservoir option 2: 9.5 Litre / 2.5 Gallons - Plastic
- Reservoir option 3: 5.6 Litre / 1.5 Gallons - Steel
- Reservoir option 4: 9.5 Litre / 2.5 Gallons - Steel
- Fixed High Relief option 1: 2500 PSI (172 Bar)
- Fixed High Relief option 2: 3500 PSI (240.9 Bar)
